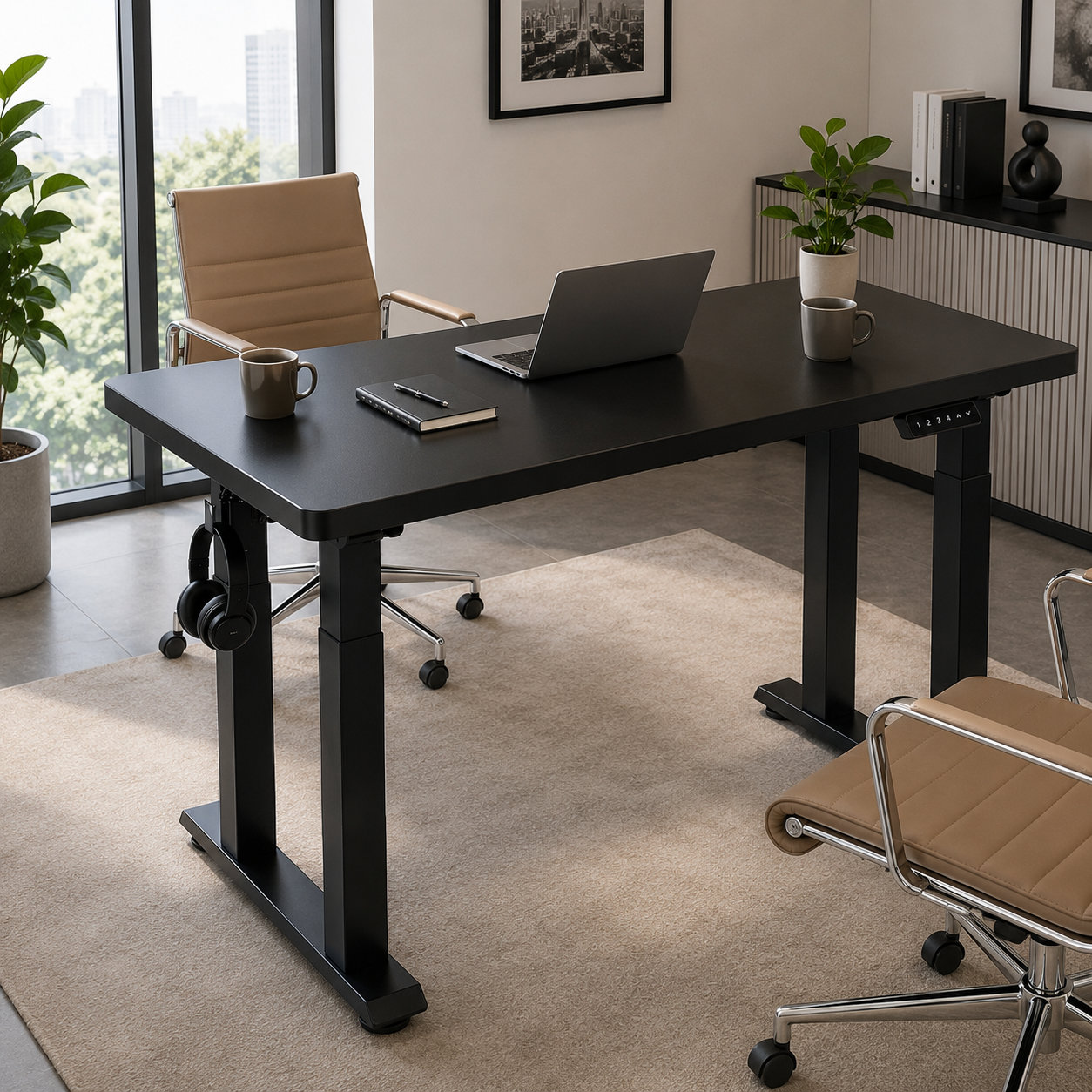

ZY-03 Four-Post Dual-Drive Two-Section Sit-Stand Desk Base
The ZY-03 gives project furniture dealers a flexible four-post electric frame that can be paired with different worktops. Two synchronized drives operate the two-section columns, while the adjustable beam helps reduce fixed-size inventory.
Dealer Benefits
Four-post base for broad support.
Dual-drive electric height adjustment.
Two-section columns with 710–1160 mm range.
950–1450 mm adjustable width.
OEM and private-label support.
Complete Attributes
| No. | Attribute | Details |
|---|
| 1 | Model | ZY-03 |
| 2 | Category | Dual motor standing desk |
| 3 | Frame type | Four-post sit-stand desk base |
| 4 | Posts | 4 |
| 5 | Drives | 2 |
| 6 | Drive mode | Synchronized dual drive |
| 7 | Column design | Two-section telescopic |
| 8 | Low height | 710 mm |
| 9 | High height | 1160 mm |
| 10 | Travel | 450 mm |
| 11 | Low width | 950 mm |
| 12 | High width | 1450 mm |
| 13 | Width span | 500 mm |
| 14 | Top depth | 550 mm |
| 15 | Foot depth | 600 mm |
| 16 | Material | Steel |
| 17 | Coating | Powder coating |
| 18 | Shown finish | White |
| 19 | Custom finish | Available for qualified orders |
| 20 | Crossbeam | Telescopic adjustable |
| 21 | Desktop | Not included unless specified |
| 22 | Desktop matching | Suitable for compatible project tops |
| 23 | Hand control | Wired handset compatible |
| 24 | Memory | Optional |
| 25 | Collision protection | Optional |
| 26 | Overload protection | Optional |
| 27 | Safety lock | Optional |
| 28 | USB option | Optional |
| 29 | Support layout | Four floor-contact points |
| 30 | Level adjustment | Leveling pads compatible |
| 31 | Cable accessories | Optional |
| 32 | Assembly type | Knock-down |
| 33 | Hardware | Bolted connections |
| 34 | Packaging | Export protective carton |
| 35 | OEM | Supported |
| 36 | ODM | Supported |
| 37 | Logo | Customizable |
| 38 | Package artwork | Customizable |
| 39 | Sample order | Subject to confirmation |
| 40 | MOQ | Negotiable |
| 41 | Buyer profile | Project furniture dealers |
| 42 | Main application | Dealer project orders |
| 43 | Other application | Office renovation packages |
| 44 | Electrical standard | Configured by market |
| 45 | Plug standard | Configured by market |
| 46 | Load data | Confirmed after configuration |
| 47 | Speed data | Confirmed after configuration |
| 48 | Noise data | Confirmed after configuration |
| 49 | QC | Inspection available by agreement |
| 50 | After-sales | Technical support available |
Applications
Dealer project orders, office renovation packages, local desktop integration, sample installations and repeat commercial supply.
