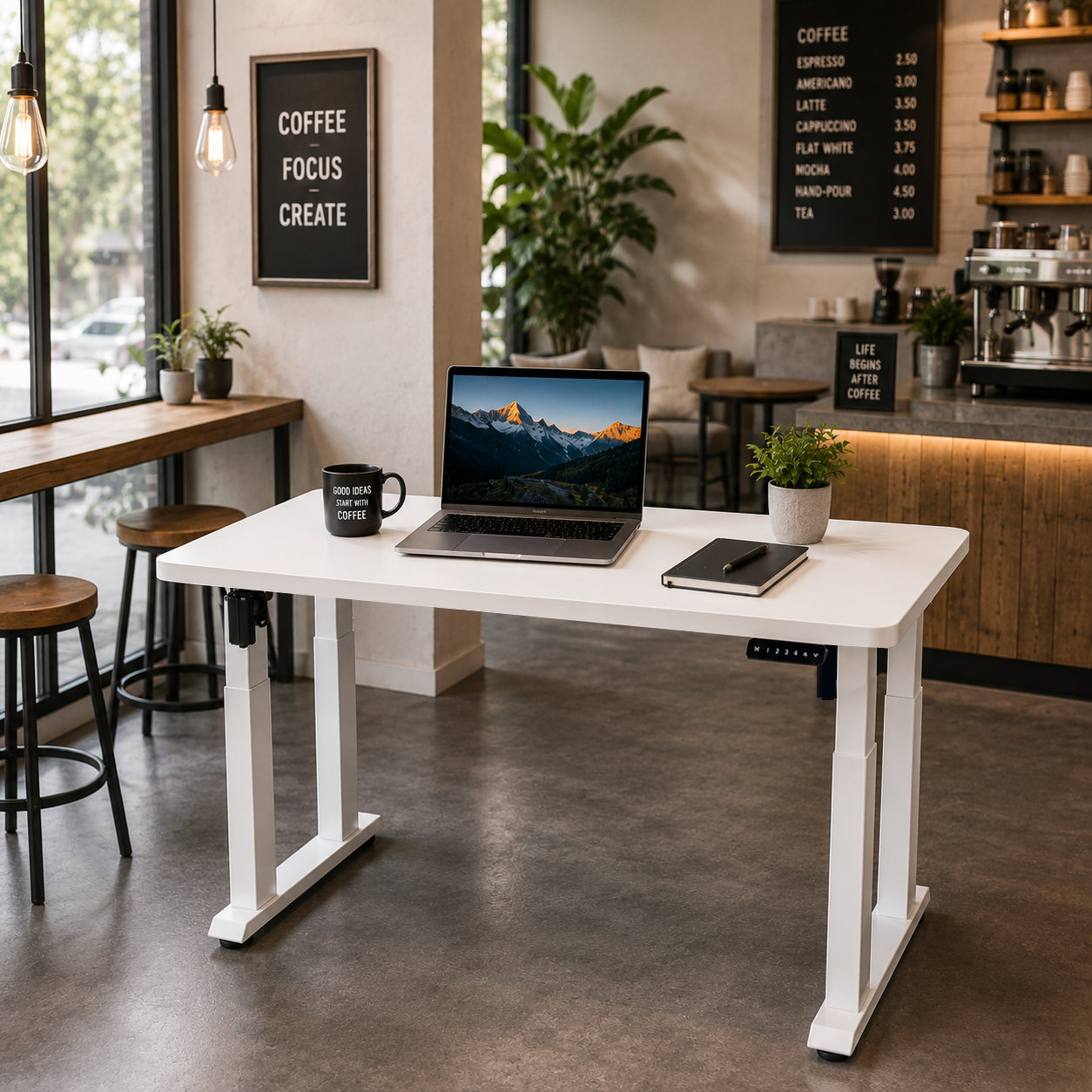

ZY-03 Quad-Leg Dual-Motor Electric Worktable Frame
The ZY-03 is a four-leg electric frame for design studios, creative offices and project worktables. Its dual-motor lift, two-stage columns and adjustable beam support different worktop formats while maintaining a balanced footprint.
Key Advantages
Quad-leg four-point support.
Dual-motor synchronized lifting.
Two-stage 710–1160 mm adjustment.
950–1450 mm width flexibility.
Customizable for distributor programs.
Attributes
| No. | Attribute | Details |
|---|
| 1 | Model | ZY-03 |
| 2 | Category | Dual motor standing desk |
| 3 | Product type | Electric worktable frame |
| 4 | Leg count | 4 |
| 5 | Motor count | 2 |
| 6 | Motor control | Synchronized |
| 7 | Column stage | Two-stage |
| 8 | Height range | 710–1160 mm |
| 9 | Height stroke | 450 mm |
| 10 | Width range | 950–1450 mm |
| 11 | Width stroke | 500 mm |
| 12 | Top frame depth | 550 mm |
| 13 | Foot depth | 600 mm |
| 14 | Material | Steel |
| 15 | Finish | Powder coating |
| 16 | Displayed color | White |
| 17 | Custom colors | Available |
| 18 | Beam | Telescopic adjustable |
| 19 | Desktop supplied | Frame only unless agreed |
| 20 | Desktop matching | Supports compatible studio worktops |
| 21 | Control handset | Wired handset compatible |
| 22 | Memory function | Optional |
| 23 | Anti-collision | Optional |
| 24 | Overload protection | Optional |
| 25 | Child lock | Optional |
| 26 | USB charging | Optional |
| 27 | Support footprint | Four-point |
| 28 | Leveling pads | Compatible |
| 29 | Cable tray | Optional |
| 30 | Assembly type | Knock-down |
| 31 | Assembly method | Bolted |
| 32 | Packaging | Export carton |
| 33 | OEM | Available |
| 34 | ODM | Available |
| 35 | Private label | Available |
| 36 | Custom carton | Available |
| 37 | Sample | Subject to confirmation |
| 38 | MOQ | Negotiable |
| 39 | Buyer group | Medium and large trading companies |
| 40 | Main use | Design studios |
| 41 | Other use | Creative offices and drafting spaces |
| 42 | Voltage | Configured by destination |
| 43 | Plug | Configured by destination |
| 44 | Capacity | Confirmed by final specification |
| 45 | Speed | Confirmed by motor package |
| 46 | Noise | Confirmed by motor package |
| 47 | Inspection | Available by agreement |
| 48 | Warranty | Defined by contract |
| 49 | Lead time | Confirmed by quantity |
| 50 | After-sales | Technical and spare-part support |
Applications
Design studios, architecture offices, drafting areas, creative workspaces and premium project worktables.
