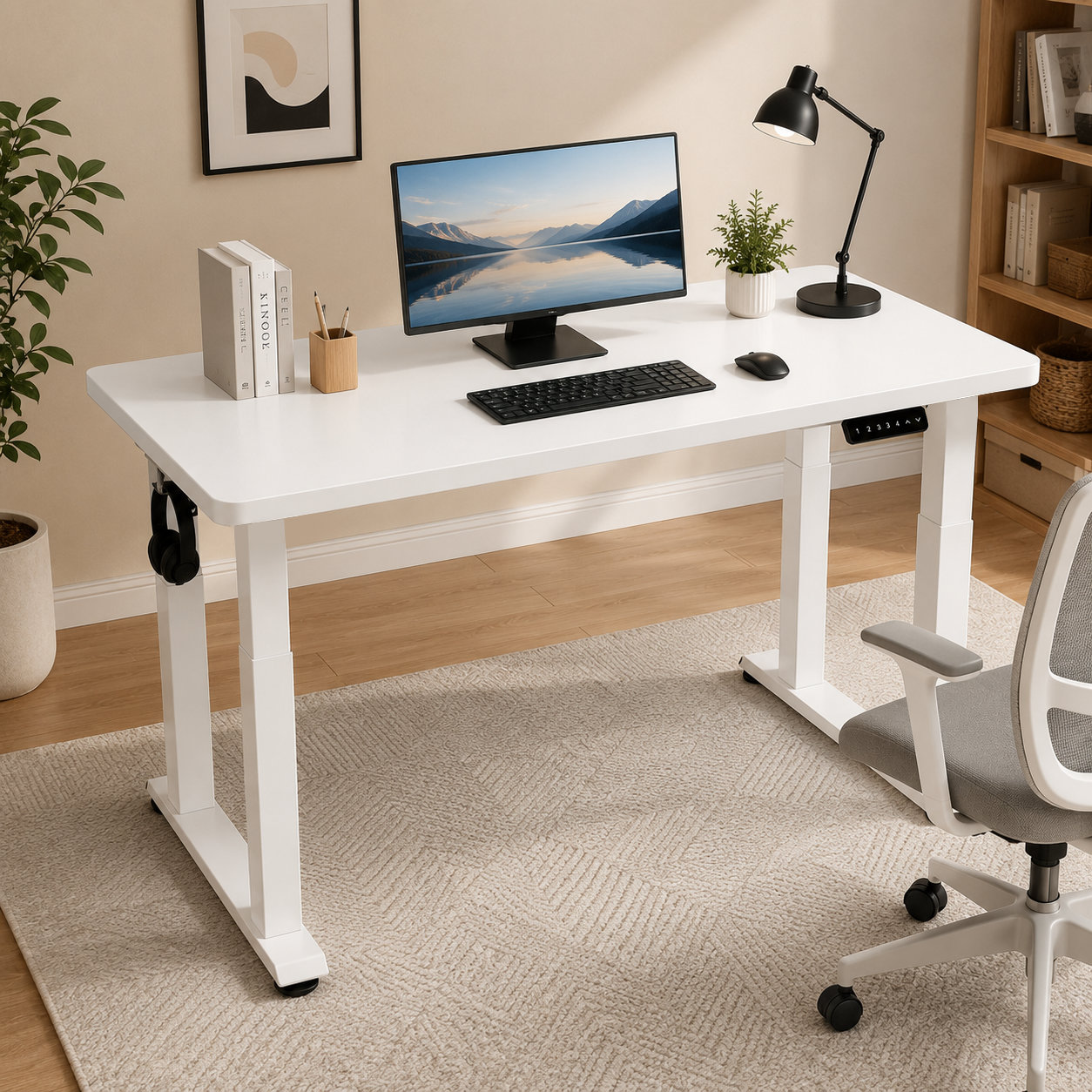

ZY-03 Four-Leg Dual-Drive Height-Adjustable Desk Frame
The ZY-03 is designed for shared work hubs, flexible offices and community workspaces. Four legs provide balanced floor support, while the dual-drive lifting system and adjustable beam allow suppliers to adapt the frame to different desktop plans.
Workspace Advantages
Four-leg layout for balanced support.
Dual-drive electric height adjustment.
Wide 950–1450 mm beam adjustment.
Two-stage 710–1160 mm lift range.
Suitable for flexible office programs.
Product Attributes
| No. | Attribute | Details |
|---|
| 1 | Model | ZY-03 |
| 2 | Category | Dual motor standing desk |
| 3 | Type | Height-adjustable desk frame |
| 4 | Leg count | 4 |
| 5 | Drive count | 2 |
| 6 | Drive mode | Dual synchronized drive |
| 7 | Column stage | Two-stage |
| 8 | Height range | 710–1160 mm |
| 9 | Height travel | 450 mm |
| 10 | Width range | 950–1450 mm |
| 11 | Width travel | 500 mm |
| 12 | Top frame depth | 550 mm |
| 13 | Foot depth | 600 mm |
| 14 | Material | Steel |
| 15 | Finish | Powder coating |
| 16 | Shown color | White |
| 17 | Custom finish | Available |
| 18 | Beam type | Wide-adjustment telescopic beam |
| 19 | Desktop included | Frame only unless agreed |
| 20 | Desktop compatibility | Suitable for shared-work desktop sizes |
| 21 | Controller | Wired handset compatible |
| 22 | Memory positions | Optional |
| 23 | Anti-collision | Optional |
| 24 | Overload protection | Optional |
| 25 | Child lock | Optional |
| 26 | USB charging | Optional |
| 27 | Floor support | Four-point |
| 28 | Leveling feet | Compatible |
| 29 | Cable management | Optional |
| 30 | Assembly | Knock-down |
| 31 | Fastening | Bolted |
| 32 | Packaging | Protective export carton |
| 33 | OEM | Available |
| 34 | ODM | Available |
| 35 | Logo | Customizable |
| 36 | Carton | Customizable |
| 37 | Sample | Subject to confirmation |
| 38 | MOQ | Negotiable |
| 39 | Target buyer | Medium and large trading companies |
| 40 | Main application | Shared work hubs |
| 41 | Other applications | Flexible offices and community workspaces |
| 42 | Voltage | Configured for destination market |
| 43 | Plug type | Configured for destination market |
| 44 | Load rating | Confirmed by final specification |
| 45 | Lifting speed | Confirmed by motor package |
| 46 | Noise level | Confirmed by motor package |
| 47 | Inspection | Available by agreement |
| 48 | Warranty | Defined in contract |
| 49 | Delivery | Confirmed by quantity |
| 50 | Support | Technical and spare-part support |
Applications
Shared work hubs, flexible workspace operators, coworking communities, hot-desk zones and collaborative office developments.
